Mould steel;Nickel and chromium are the alloying elements for hardness and toughness.Good machinability, excellent polishability, suitable for texturing. Improved through hardenability compared to Mat.No. 1.2311.
Enduse = Typically used for relatively low temperature applications such as die casting dies and injection molds, synthetic plastic moulds dies, for large moulds.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni |
1.2738 | DIN | 0.35-0.45 | 0.20-0.40 | 1.30-1.60 | 0.025 | 0.015 | 1.80-2.10 | 0.15-0.25 | 0.90-1.20 |
Heat Treatment: QT
Hardness: 280-330HB
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class D/d
Degree of Purity: DIN 50602, K4 max. 20
Microstructure: quenched and tempered / fine - even structure
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

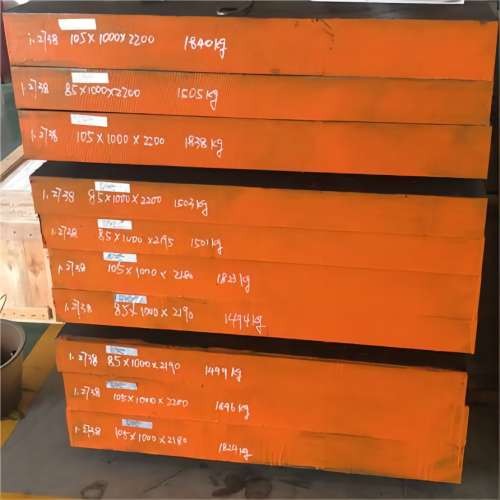

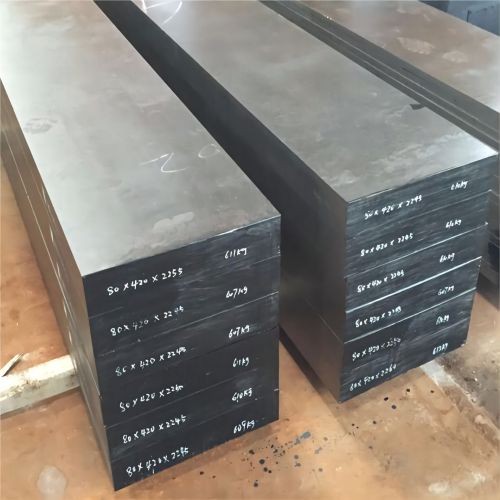

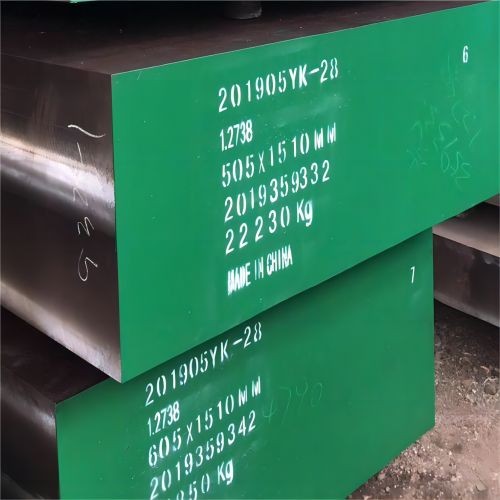

Round Bar: Ø12-500mm Flat Bar: 12-500x100-1500mm
