Mould steel; It is generally supplied hardened and tempered to 880-1080 N/mm2.Higher sulphur content proviedes good machinability at relatively high hardness.Possibility of nitriding. Steel has good polishability.
Enduse = mould frames,mould plates,mould frames for plastic and die casting moulds.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | Mo |
1.2312 | DIN | 0.35-0.45 | 0.20-0.40 | 1.30-1.60 | 0.025 | 0.05-0.10 | 1.80-2.10 | 0.15-0.25 |
Heat Treatment: QT
Hardness: 280-330HB
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class D/d
Degree of Purity: DIN 50602, K4 max. 20
Microstructure: quenched and tempered / fine - even structure
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

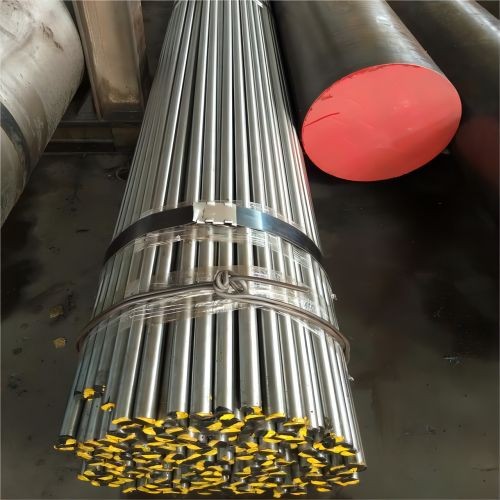

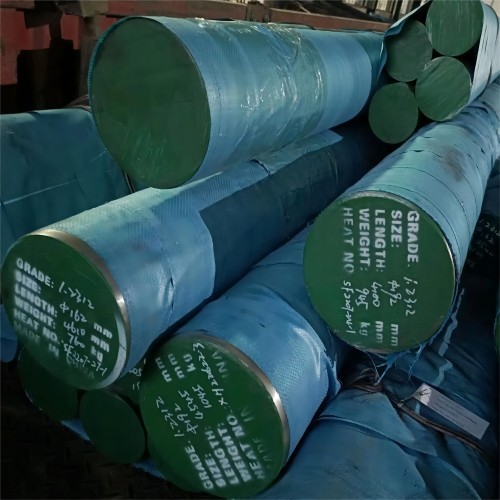

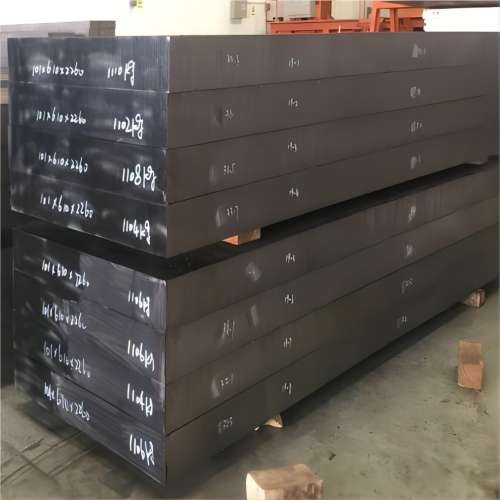

Round Bar: Ø12-500mm Flat Bar: 12-500x100-1500mm
