Hot work tool steel; good hardenability.Uniform hardness over section also at great dimensions. Resistance under impact loadings. Very good strength and toughness. Good tempering resistance and dimensional stability.
Enduse = Forging tools,dies of all sorts,shapes and sizes,hot forging and pressing tools for steel and metal. Moulds, bushings, piercers etc.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | Mo | V | Ni |
1.2714 | DIN | 0.5-0.6 | 0.1-0.4 | 0.6-0.9 | 0.03 | 0.03 | 0.8-1.2 | 0.35-0.55 | 0.05-0.15 | 1.50-1.80 |
L6 | AISI/SAE | 0.65-0.75 | 0.1-0.5 | 0.25-0.8 | 0.03 | 0.03 | 0.6-1.2 | ≤0.50 | / | 1.25-2.00 |
SKT4 | JIS | 0.5-0.6 | 0.1-0.4 | 0.6-0.9 | 0.03 | 0.02 | 0.8-1.2 | 0.35-0.55 | 0.05-0.15 | 1.50-1.80 |
Heat Treatment: annealed or QT
Hardness: max. 248 HB or QT as per agreement
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class D/d
Degree of Purity: DIN 50602, K4 max. 20
Microstructure: soft annealed struture / Ferrite / Cabides
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

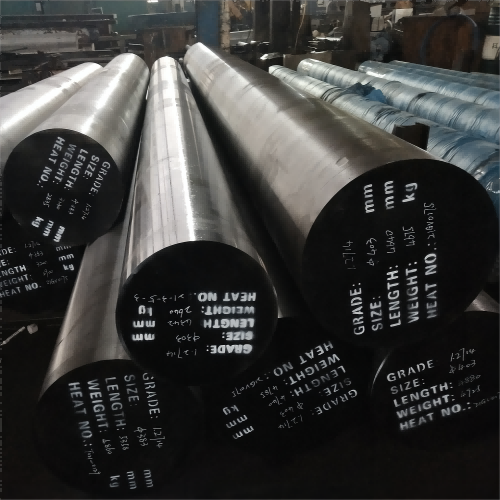

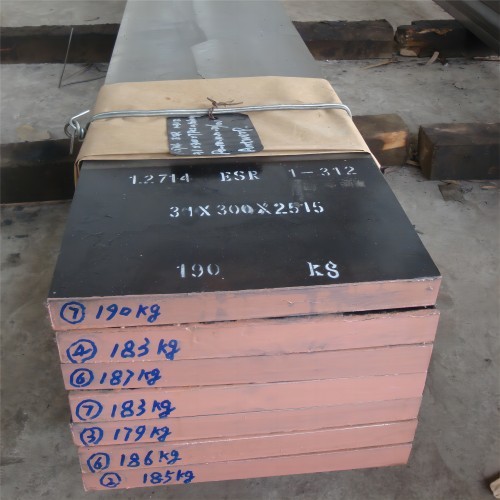

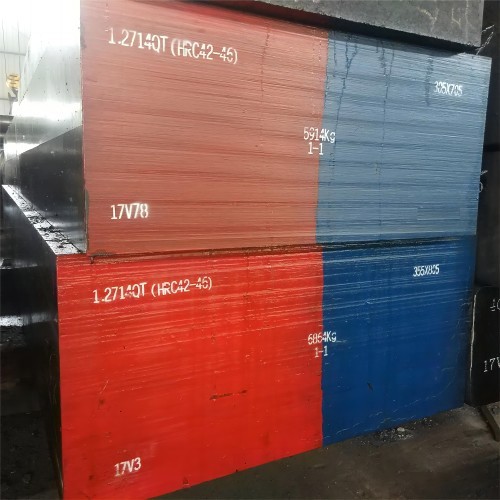

Round Bar: Ø12-500mm Flat Bar: 12-500x100-750mm
