Hot work tool steel; It exhibits excellent resistance to softening at elevated tempertaure. This grade is very reistant to thermal fatique cracking (heat cracking).
Enduse = It is recommended for difficult hot work tooling applications such as hot punches, forging dies, hot shear blades, extrusion tooling.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | Mo | V |
1.2365 | DIN | 0.28-0.35 | 0.10-0.40 | 0.15-0.45 | 0.025 | 0.015 | 2.70-3.20 | 2.50-3.00 | 0.40-0.70 |
H10 | AISI/SAE | 0.35-0.45 | 0.80-1.20 | 0.25-0.70 | 0.025 | 0.015 | 3.00-3.75 | 2.00-3.00 | 0.25-0.75 |
Heat Treatment: annealed
Hardness: max. 229 HB
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class D/d
Degree of Purity: DIN 50602, K4 max. 20
Microstructure: soft annealed / acc. to SEP 1614, max. figures as follows:
segregation = SA1-SA4; SB1-SB4;SC1-SC4;SD1-SD4
microstructure = GA1-GA5; GB1-GB4;GC1-GC2;GD1-GD2;GE1
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

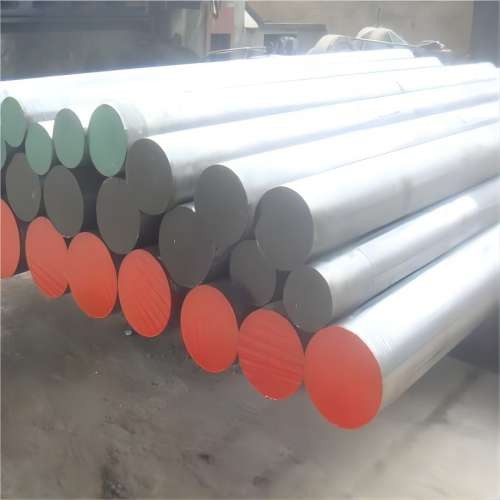

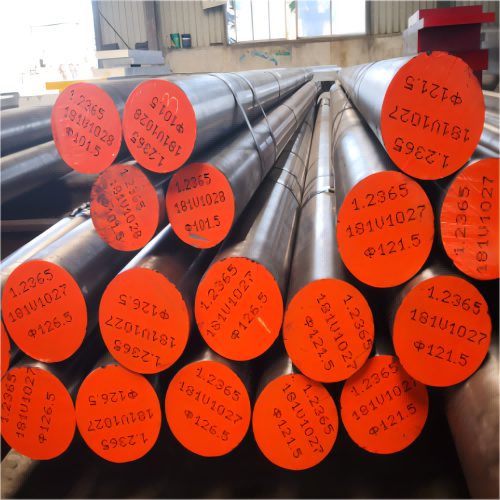

Round Bar: Ø12-500mm Flat Bar: 12-500x100-750mm
