Cold work tool steel;Ledeburitic chromium steel with high durability and cutting performance;low distortion on hardening.
Enduse = Cutting tools for sheet metal,paper blades,stone compression moulds,section rolling-mill rolls,deep-drawing tools.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | W |
1.2436 | DIN | 2.00-2.30 | 0.10-0.40 | 0.30-0.60 | 0.030 | 0.030 | 11.0-13.0 | 0.60-0.80 |
D6 | AISI/SAE | 2.00-2.20 | 0.70-0.90 | 0.20-0.40 | 0.030 | 0.030 | 11.5-12.5 | 0.60-0.90 |
SKD2 | JIS | 2.00-2.30 | 0.10-0.40 | 0.30-0.60 | 0.030 | 0.030 | 11.0-13.0 | 0.60-0.80 |
Heat Treatment: annealed
Hardness: max. 255 HB
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class D/d
Degree of Purity: DIN 50602, K4 max. 30
Microstructure: Carbide distribution as per Böhler classification Chart AL011DE10.91 edition 1984, aiming max. acceptable figures: diamter / thickness : up to 100 mm 3.3 ; 2.4 ; 1.4
100 - 250 mm 3.4 ; 1.5
251 - 400 mm 4.3 ; 3.5 ; 2.6
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

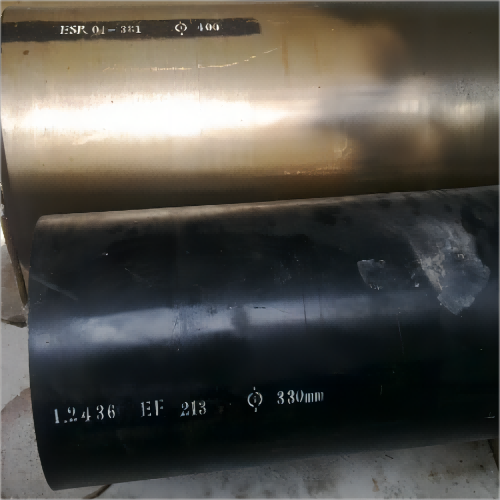

Round Bar: Ø12-400mm Flat Bar: 12-400x100-750mm
