Hot work tool steel;highest level of toughness, temperature fatigue resistant.
Enduse = tools for highly stressed extrusion dies and die casting moulds, press dies.
Chemical Composition:
Grade | Standard | C | Si | Mn | P≤ | S≤ | Cr | Mo | V |
1.2344 | DIN | 0.35-0.42 | 0.80-1.20 | 0.25-0.50 | 0.025 | 0.010 | 4.80-5.50 | 1.20-1.50 | 0.85-1.15 |
H13 | AISI/SAE | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 0.025 | 0.010 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
SKD61 | JIS | 0.35-0.42 | 0.80-1.20 | 0.25-0.50 | 0.025 | 0.010 | 4.80-5.50 | 1.00-1.50 | 0.80-1.15 |
Heat Treatment: annealed
Hardness: max. 229 HB
Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.
US Test: SEP 1921 group 3, class E/e
Degree of Purity: DIN 50602, K1 max. 30
Microstructure: soft annealed / acc. to SEP 1614, max. figures as follows:
segregation = SA1-SA4; SB1-SB4;SC1-SC4
microstructure = GA1-GA5; GB1-GB4;GC1-GC2;GD1-GD2;GE1
Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

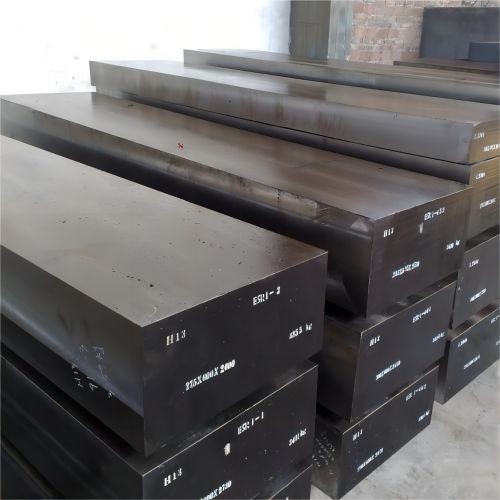

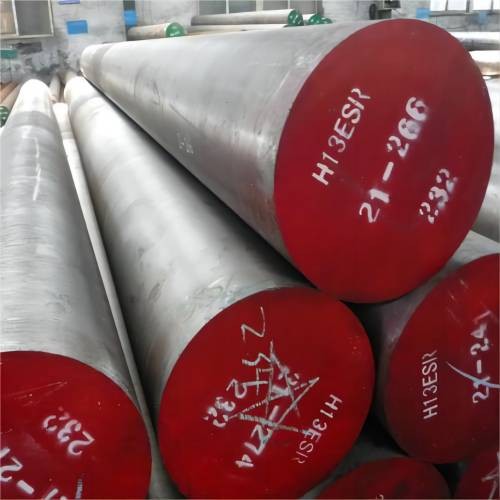

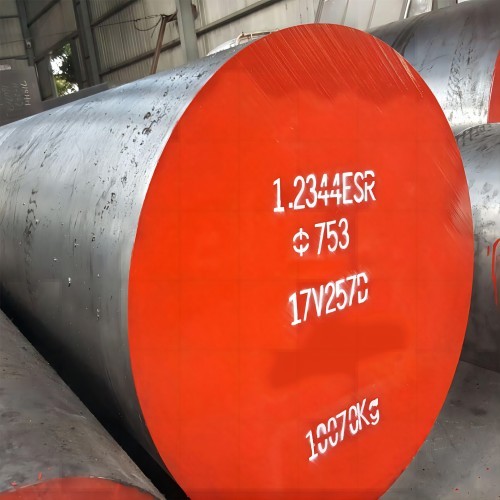

Round Bar: Ø12-500mm Flat Bar: 12-500x100-750mm
